JS-U0400-DLP

Counterbalanced AGV Robot is designed for the automatic transfer and handling of goods on two-way or four-way entry pallets between different storage locations. Boasting a maximum load capacity of 400kg and a lifting height of up to 60mm, it offers fast driving speed, excellent climbing capability, and reliable load-bearing performance. Beyond stacking operations, the JS-U0400-DLP is widely applied in diverse scenarios, including human-machine interaction, goods stacking, equipment docking, horizontal handling, and high-level storage.

Rated Load: 400kg

Lifting Height: 60mm

Download

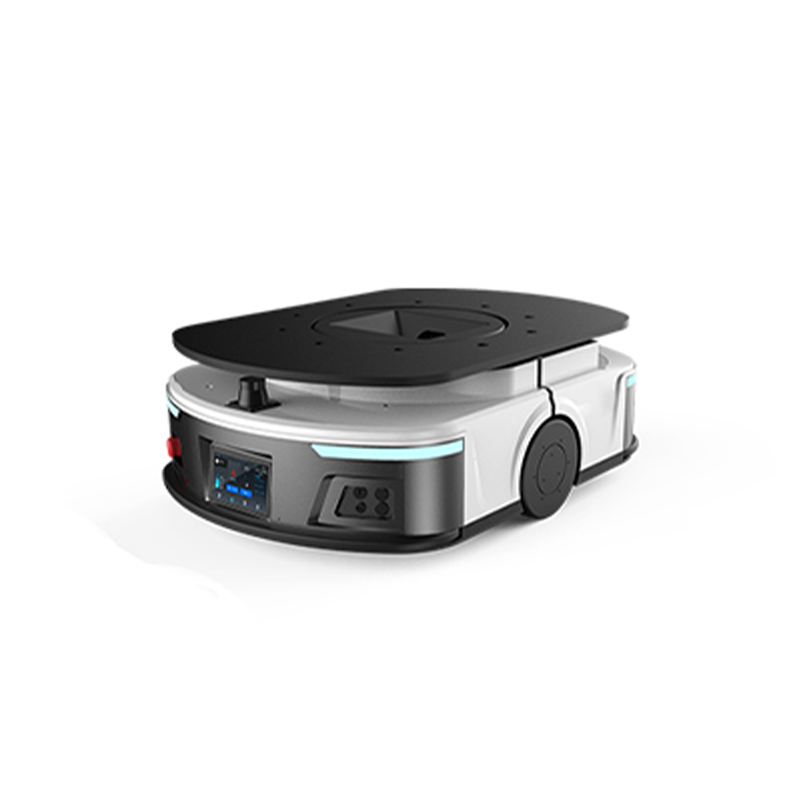

3400

Description of Design

The Visual Handling Robot features our self‑developed RY‑MRDVS depth vision technology. This deep vision empowerment delivers precise obstacle avoidance and detour capabilities, boosting 3D environmental perception and operational safety significantly.
Industrial design redefines tradition: smooth curved lines replace cold, rigid forms of conventional industrial equipment, optimizing air resistance for efficient movement. Sharp edges and corners are fully eliminated to maximize user safety.
Equipped with a self-developed core controller, the robot supports multiple navigation modes and integrates diverse communication interfaces. It ensures neat, safe internal wiring while enabling orderly, high-efficiency system operation for reliable performance.

Application industry

— Applied in 3C, new energy, automobile, railway chemical industry, construction machinery, e-commerce/retail, food and medicine, packaging and many other fields.
– To realize “intelligent logistics” and “goods on arrival” in the factory
– Multi-shift operation, 24 hours a day.

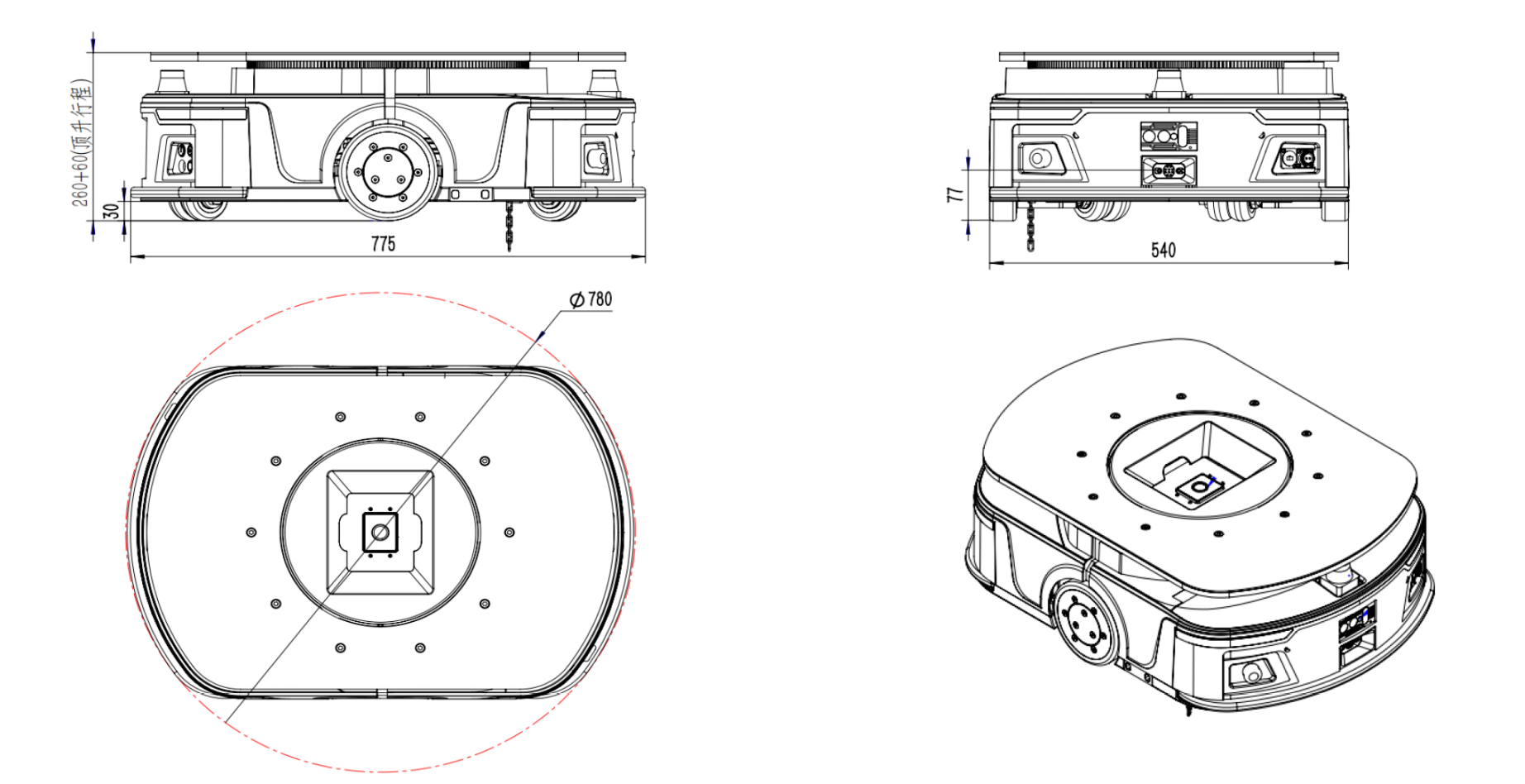

Product three-views drawing

Technical parameter

Product model  JS-U0400-DLP
Basic parameters Overall dimensions 775L*540W*260H mm
Body dead weight 90 kg
Rotating diameter ∅780 mm
Operating capability Lifting height 60 mm
Lifting rated load 400 kg
Cargo fixing and vehicle rotating Standard
Safety protection Scope of protection 360° omni-directional without blind angle, including body and carrying shelf
Protective measures Three-level collision avoidance: Deceleration, slow stop and emergency brake
Laser obstacle avoidance Full coverage of front and rear double lasers at 360°
Safety edge stop All-round protection
Emergency stop button Can be operated with a one-handed reach around the body
Audible and visible alarm Light indication + voice prompt
Visual obstacle avoidance Support matching:≥ 60mm
Movement performance Driving mode Two-wheel differential
Navigation mode Hybrid navigation: Dual laser SLAM + QR code
Walking mode Back and forth two-way, in-situ rotation, left and right turning
Walking speed 0~2.0m/s
Navigation accuracy ±10mm
Docking accuracy ±5mm
Battery strength Battery type Lithium iron phosphate
Battery specification 48V 21Ah
Battery life ≥8h
Charge mode Autonomous charging + manual charging
Charge time ≤1.5h
Battery cycle life 2,000 cycles
Man-machine interaction Light indication Including body status, fault alarm, battery power and other indicators
Sound prompt Including steering, alarm prompt, playing of music and other prompts
Button operation Power/Start/Pause/Reset/Auto/Manual
Expansion port RJ45/100MB
Application environment Application environment Indoor
Ambient temperature 0~40°C
Ambient humidity 10-90% RH, no condensation
Pavement gradient ≤5%/ 3°
Gap width ≤20mm
Step height ≤10mm
Air environment Free of dust, flammable, explosive and corrosive gases
Network communication WIFI(IEEE 802.11 a/b/g/n/ac), 4G LTE, 5G
